  • Federal Parrott 20 Pound Chilled - Nose Bolt / SOLD

    $0.00
    This item is out of stock

    Federal Parrott 20 Pound Chilled - Nose Bolt - Inventory Number: ART 336 / SOLD

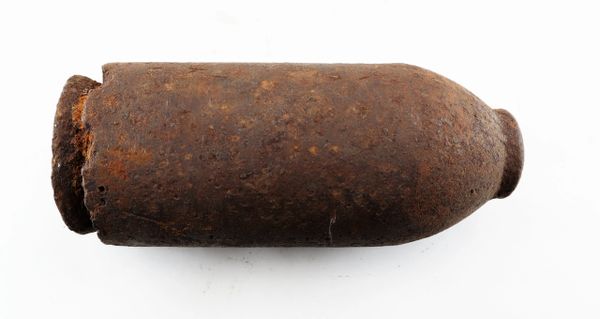

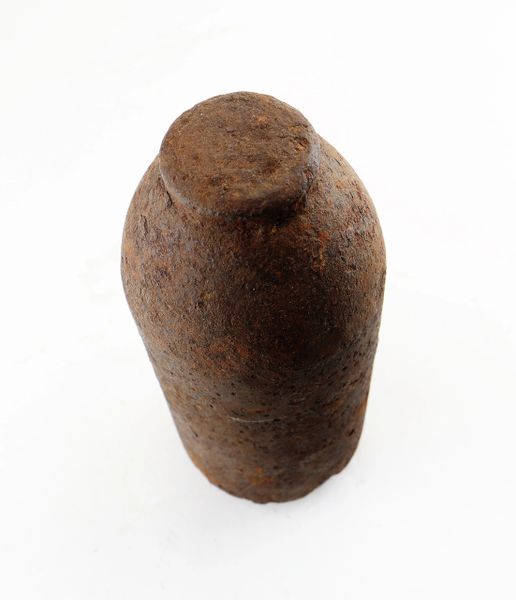

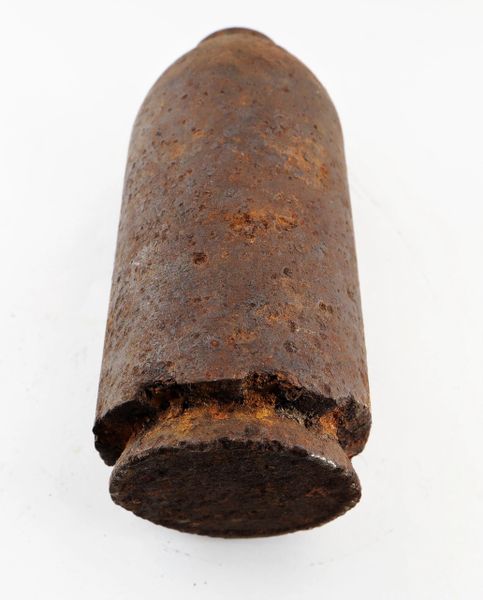

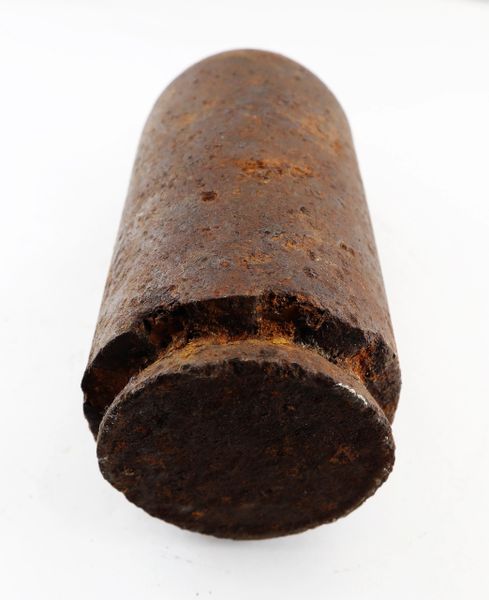

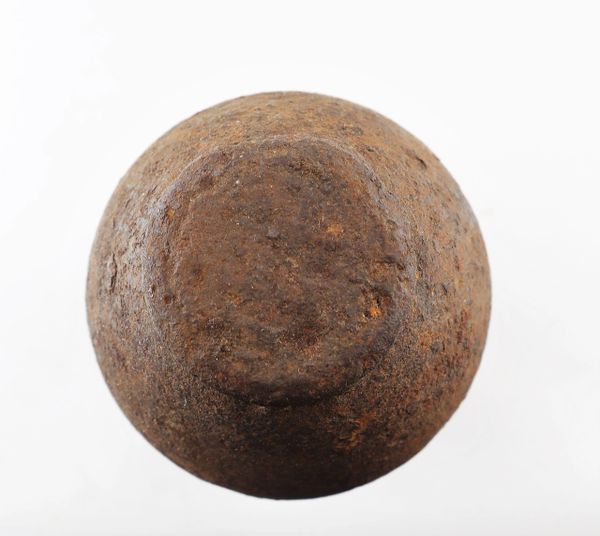

    Federal Parrott 20 Pound Chilled – Nose Bolt

    DIAMETER: 3.63 inches

    GUN: 20-pounder Parrott rifle, 3.67” caliber

    LENGTH: 8 7/8 inches

    WEIGHT: 19 pounds 14 ounces

    CONSTRUCTION: Solid shot

    SABOT: Brass ring

    FUZING: None

    This style of Parrott projectile is commonly referred to as a Parrott chilled-nose bolt. This projectile was designed primarily for destroying fortifications and not used as an anti-personnel projectile.  Projectile was manufactured in the Federal arsenals following the invention of Robert Parrott. The sabot system utilized was a narrow brass ring secured to the base with internal rabbets, referred to as "type III", more flexible than wrought iron and more narrow than the high band, this took the rifling much better than the earlier designs. Shell is solid casting, or "bolt" and was designed to be used against opposing cannon by striking the equipment, use of this light bolt had limited applicability and is relatively scarce in the smaller calibers. The blunt nose of this bolt was hardened by "chilling", a process of rapid cooling after casting, and was tapered to a smaller diameter in order to concentrate the force on impact. Bottom of shell usually shows a casting sprue which was rough milled, there will often be casting flaws near the base.  Very nice example from the collection of the late artillery expert Bill Erquitt.


    Inventory Number: ART 336 / SOLD
