  • Federal Read-Parrott

    $265.00
    There is only 1 item left in stock.

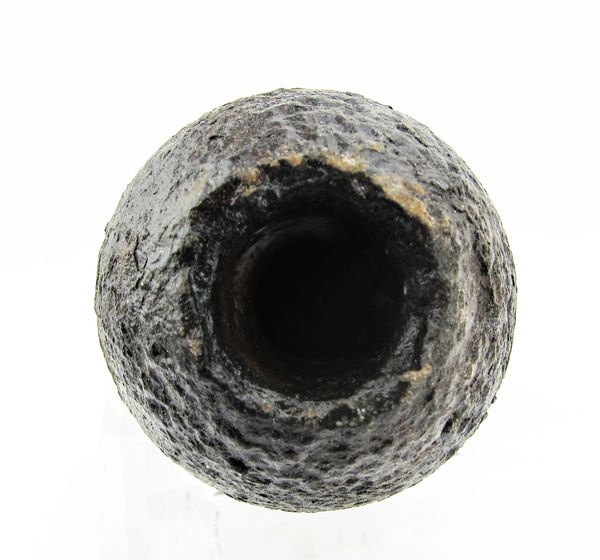

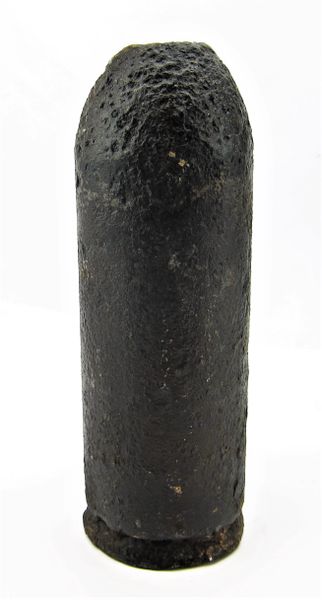

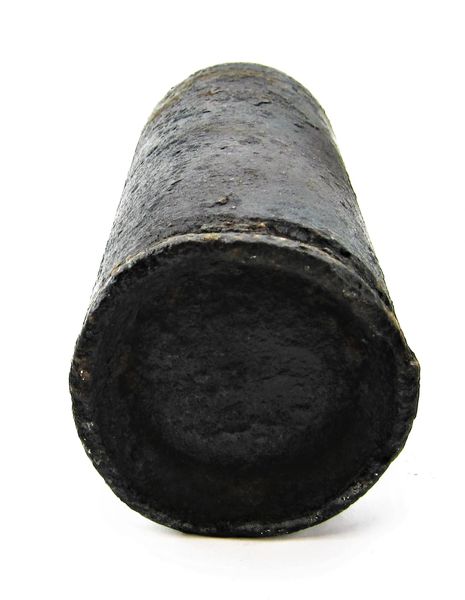

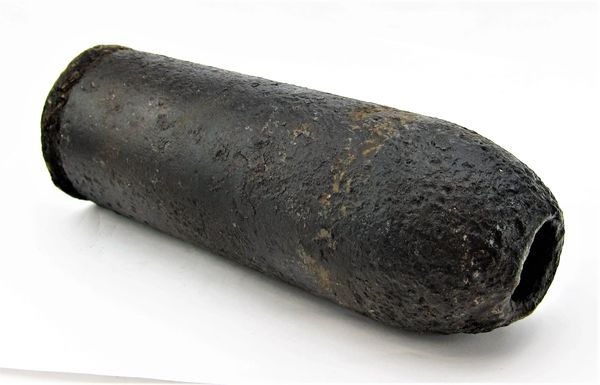

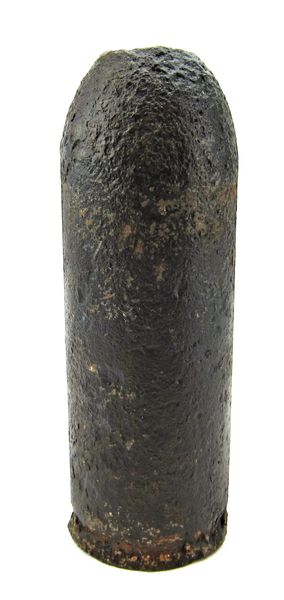

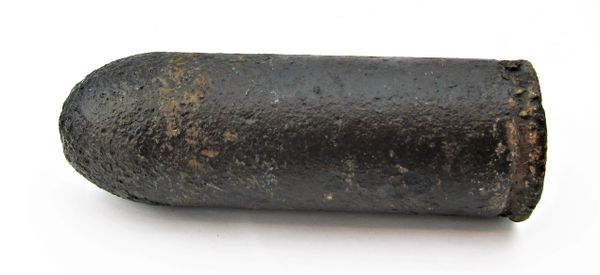

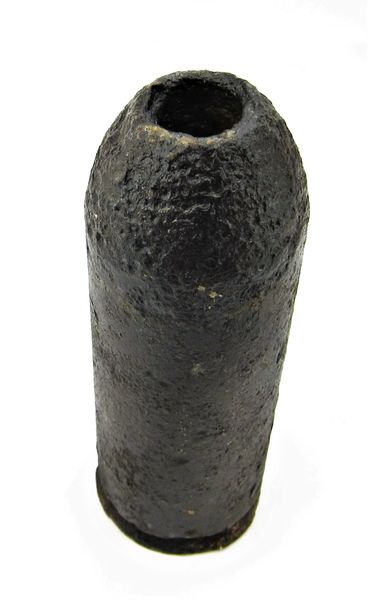

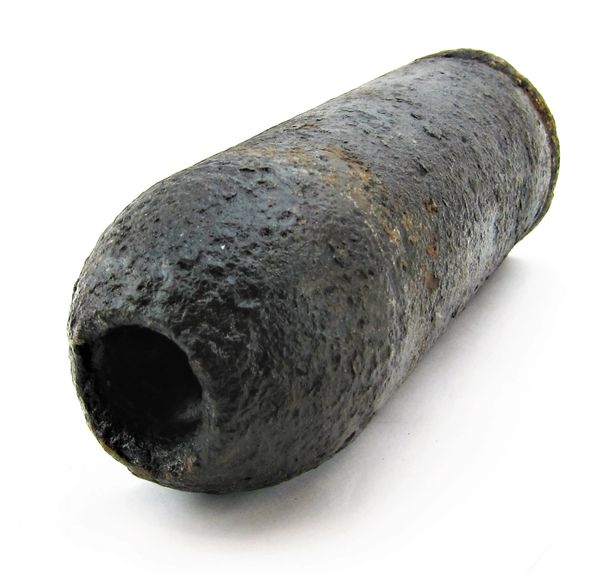

    Federal Read-Parrott - Inventory Number: ART 166

    DIAMETER: 2.86 inches

    GUN: 10-pounder Parrott rifle, 2.9-inch caliber
    LENGTH: 8 7/8 inches
    WEIGHT: 8 pounds 15 ounces
    CONSTRUCTION: Shell
    SABOT: Wrought iron ring
    FUZING: Parrott percussion, zinc

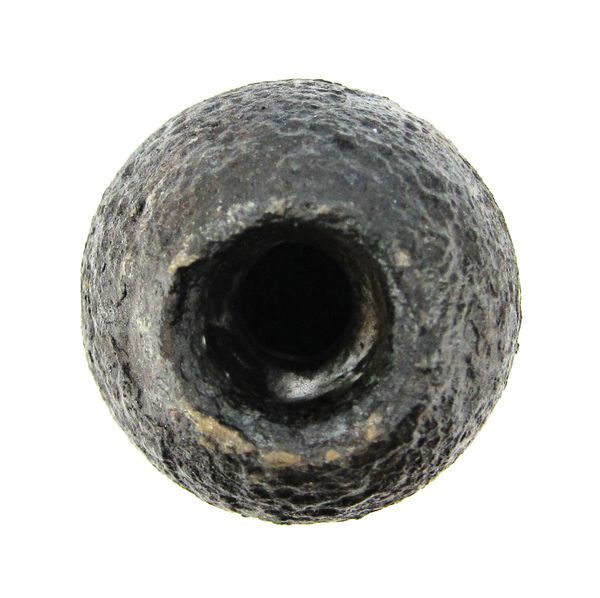

    All Federal Read-Parrott projectiles with wrought iron ring sabots were manufactured for use in the 10-pounder Parrott rifle of 2.9-inch caliber. The wrought iron ring was cast first and placed into the projectile mould in such a manner that, after casting, it was firmly embedded in the metal body. It was then placed in a metal cylinder and pre-stamped (according to Parrott's patent information) with the rifling grooves. The fuze in this specimen consists of a zinc anvil cap and a zinc striker. A percussion cap rested upon the iron nipple of the zinc striker. Often upon firing, the striker would bind at an angle inside the threaded fuze cavity of the nose of the projectile, thus preventing detonation due to the lack of contact with the anvil cap.  Parrott patented this projectile on August 20, 1861, United States Patent # 33,100.


    Inventory Number: ART 166
